Model Number Locations
1Select Category Type
Select Category Type
2Select Product Type
Select Product Type
3Select {MODEL} Type
Select {MODEL} Type
Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):
Model has been saved to My Models. If you're not signed in, your lists are available on this device and will expire within 30 days.
Model has been saved to My Models.
This part is a door balance link kit, also sometimes known as door cable or door spring cable kit, that helps support the door as it opens and closes by connecting to the dishwasher door hinges. The k...
$27.95
In Stock
Order now and your part arrives in 2-3 business days!
This manufacturer-approved Rack Stop Clip is a gray plastic part which can be installed with a screwdriver. Measuring slightly over an inch in length, it prevents the rack from sliding too far and fal...
$11.95
In Stock
Order now and your part arrives in 2-3 business days!
This gray plastic lower dishrack roller is a part for your dishwasher. It attaches to the bottom of the lower dishrack, allowing it to move in and out smoothly. If the lower dishrack stops moving in a...
$46.15
In Stock
Order now and your part arrives in 2-3 business days!
The tine pivot clip, also known as the tine row pivot, is used in dishwashers and is located in the upper dishrack. At around 3 inches in length, the clip is used to keep the tine row in place in the ...
$9.95
In Stock
Order now and your part arrives in 2-3 business days!
This drawer track or rack slider bar is for use in your dishwasher. It connects to the upper dish rack, and allows the rack top slide in and out. You may need to replace this part if your old rack wil...
$52.47
In Stock
Order now and your part arrives in 2-3 business days!
This drain pump is used in dishwashers to remove water from the dishwasher tub. If the impeller in the dishwasher is damaged or the motor has been shorted out and will not drain, it is possible the bo...
$59.95
In Stock
Order now and your part arrives in 2-3 business days!
This assembly is the wheel and the mount for your upper dishrack. Sold individually. This is an authentic OEM part for use with Whirlpool, KitchenAid, Kenmore and Jenn-Air Dishwashers. The dishrack wh...
$44.95
In Stock
Order now and your part arrives in 2-3 business days!
The rubber washer is a part which is specific to dishwashers and should not be substituted by a similar part. It works with the heating element to seal the receptacle opening where the heating element...
$8.37
In Stock
Order now and your part arrives in 2-3 business days!
This filter works with the water pump in your dishwasher. It prevents debris from entering the pump and causing damage. As a result, the filter can occasionally become clogged or damaged, and will nee...
$46.14
In Stock
Order now and your part arrives in 2-3 business days!
The heating element is not designed to heat the water that enters it, but is designed to maintain the heat of the water that enters the dishwasher. It is located on the bottom of the dishwasher.
$77.91
In Stock
Order now and your part arrives in 2-3 business days!
Ask our experts a question about this model and we'll get back to you as soon as possible!
1 question answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Santosh
February 5, 2020
Kenmore dishwasher leaking at times. Leakage also erratic in quantity of water and it appears erratic in the force with which the water comes out. The technician says the door seal along the bottom of the door needs to be replaced. This part appears to be a greyish hard plastic, i wonder how it seals. Also i do not see this plastic part listed in your list. Your video shows leak repair by replacing the soft rubber door gasket installed on the washer body. I’m confused as to which part needs to be replaced. 2. The lower spray arm assembly consists of one large arm with two small sprayers, one installed at each end. These small sprayers have deteriorated/ broken off partially. I do not see this part listed in your list. Nor do i see any video showing replacement of the lower spray arm.
For model number 66513939K010
Hello and thank you for writing.
The lower door seal is PS11731683, this is a soft foam that seals and goes on top of the plastic, it almost sounds like the seal is missing. Then you have the rubber door gasket # 11722167 that seals the sides and top of the door, it needs to be replaced if you can see cracks or damage to it. The lower spray arm comes only as this assembly PS11750070. For your convenience, we have attached the link to our repair video. We hope this helps. Good luck with your repair.

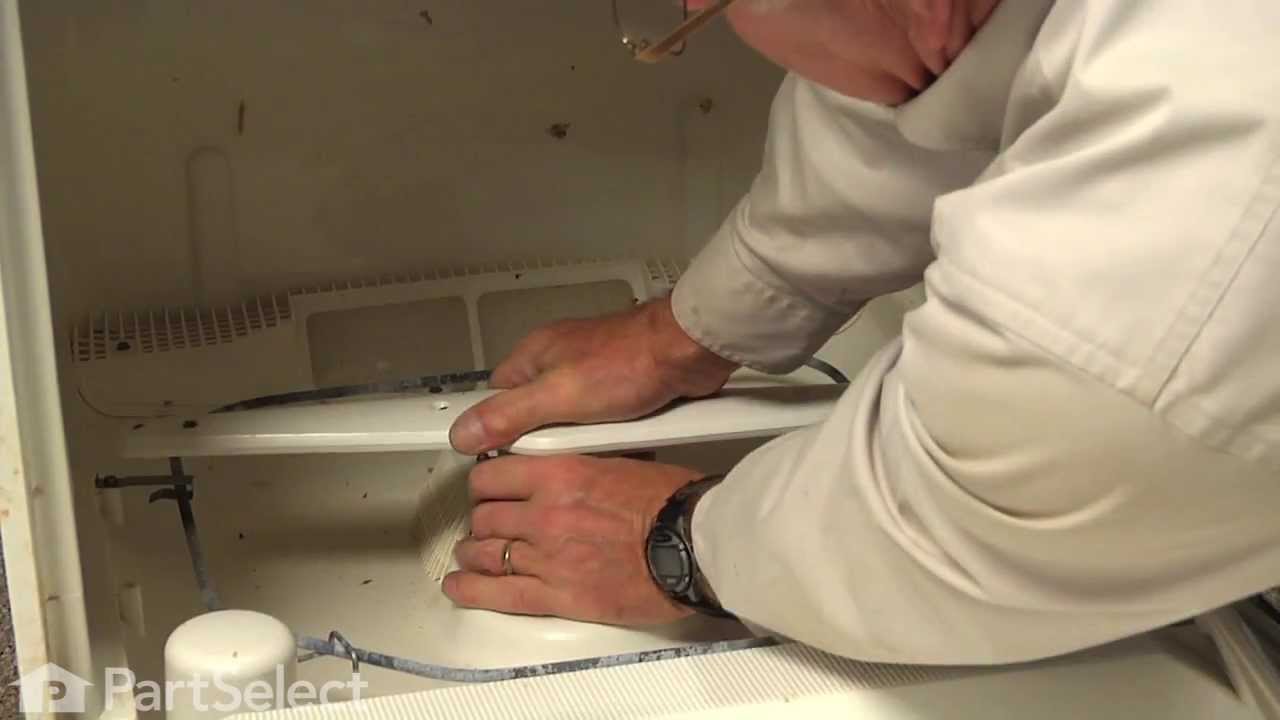

https://www.youtube.com/watch?v=AJUk34IO1ig
Pulled dishwasher from under counter, attached link to spring, hooked spring back into frame/chassis, threaded link through pulleys, attached other end of link onto door, reinstalled dishwasher under counter. All's well. Note-I purchased an extra link anticipating that the other one will fail. They're cheap enough.
Caviat: The actual repair is less than 15 minutes, but I spent a lot of time playing with it before I figured out it was that easy and fast. You don't need to remove the dishwasher from the counter to do this. And it will probably help to look at the new part closely so you can understand where the retainer clip is to press it and release
... Read more the old pump.
First remove the water from the dishwasher pan that would not drain with a wet/dry vac. Otherwise the water will all drain on the floor when you remove the pump. Then remove the two screws on the kickplate on the front of the unit below the door. Remove the kickplate/maintainence access cover. The drain pump is on the right about 8 inches in. Using two hands you grasp the drain pump with your right hand and use the left hand to push the retaining clip down. Then the drain pump will rotate 1/4 turn counterclockwise and can be removed without pulling the dishwasher out. There is likely to be some water leak out that was traped in the pump housing that you can not reach with the vac. Disconnect the wire. Connect the wire to the new pump, put it in place and 1/4 turn clockwise to install it. Replace the kickplate and you're done.
1. Open the dishwasher and remove the two plastic grommets about halfway down on either side of the opening. Then remove the two screws under the grommets.
2. Remove the kick plate under the door. May have to lower unit by turning the feet using the adjustable wrench.
3. Make sure you have enough slack in the water i
... Read morenput line and electrical wiring that you can pull the dishwasher out about 12 inches or more.
4. There is a spring and nylon rope link on both sides of the unit. Probably just one link is broken, but the replacement comes with two, so you can replace both or save one as a spare. Look at the good side and it should be pretty self explanatory how it attaches. I found it easiest to first thread the link around the lower pulley, then attach the link to the spring, then spring to the rear support, then the link to the door.
