Parts That Fix Amana Range AER5630BAS0 Oven is too hot
Oven is too hot is a commonly reported symptom for the AER5630BAS0 Amana Range, and we have put together a full guide
... Read more
on how to fix this. This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your AER5630BAS0 Amana Range that will fix Oven is too hot.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Read less
Oven is too hot is a commonly reported symptom for the AER5630BAS0 Amana Range, and we have put together a full guide on how to fix this.
This advice is based on feedback from people who own this exact appliance. We have listed the most common parts for your AER5630BAS0 Amana Range that will fix Oven is too hot.
We have included repair instructions, and helpful step-by-step video tutorials. If you are experiencing this issue, not to worry, DIYers just like you have fixed this, and shared their experience to help you!
Fixes Symptom 75% of time
This oven temperature sensor, for ranges, works together with the oven control board to measure and regulate the oven temperature. The sensor detects the temperature in the oven cavity. If the following symptoms occur, replacing the temperature sensor could be the solution: Little or no heat when baking, oven not heating evenly, oven will not start, and/or oven is overheating. Often, if the sensor is defective, the oven temperature will fluctuate and be inaccurate by more than 50 degrees. The tool needed for this replacement is a #2 square head screwdriver or a #2 Philips screwdriver. Remember to unplug the range before installing the part.
$
72.95
In Stock
PartSelect Number PS11749737
Manufacturer Part Number WPW10181986
Replacing your Whirlpool Range Range Sensor
Customer Repair Stories
Oven stuck in cleaning mode
Google the error code that the range was displaying and found others with the same symptoms. Then found several people that had fixed the problem by replacing the oven sensor. I then ordered the sensor and replaced it, which fixed the problem.
-
Hal from Santa Rosa, CA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
46 of 86 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
temperature not accurate after 3 1/2 years of happy usage
Opened up the back of the stove. Unpluged the sensor. Replaced the sensor. Replace the back of the stove.
The sensor that has been replaced is not what is expected. After reading all of the instructions for adjusting the temperatures, the only temp that stays steady is when we first turn on the oven to 350 degrees. That stays s ... Read more teady but when I turn it to 400 it slowly goes up to 425 degrees.
The sensor that has been replaced is not what is expected. After reading all of the instructions for adjusting the temperatures, the only temp that stays steady is when we first turn on the oven to 350 degrees. That stays s ... Read more teady but when I turn it to 400 it slowly goes up to 425 degrees.
Read less
-
Ruth from Oregon, IL
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
141 of 264 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 19% of time
This part is used as a safety feature. If your range overheats this part will shut the range down.
$
31.95
In Stock
PartSelect Number PS11740991
Manufacturer Part Number WP3196548
Replacing your Whirlpool Range Range Safety Thermostat
Customer Repair Stories
The oven light shorted out causing the safety thermostat to blow.
Replaced the safety thermostat and disconnected the oven light.
Works great again...without the light
Works great again...without the light
-
Joseph K from PAHRUMP, NV
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
4 of 6 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
oven wouldn't heat / bake or broil
remove back panel , remove thermostat where the blue and red wire join together . blue (broil) red (bake) . The thermostat burned out because of a bad electronic board that was caused when using the self clean. i also replace the board with a refurbished board and the range is working like new. won't use self clean again, it gets too hot.
-
Derek from Houston, TX
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
4 of 5 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 4% of time
This switch controls the stove top surface burner.
$
72.22
In Stock
PartSelect Number PS11754687
Manufacturer Part Number WPW10434452

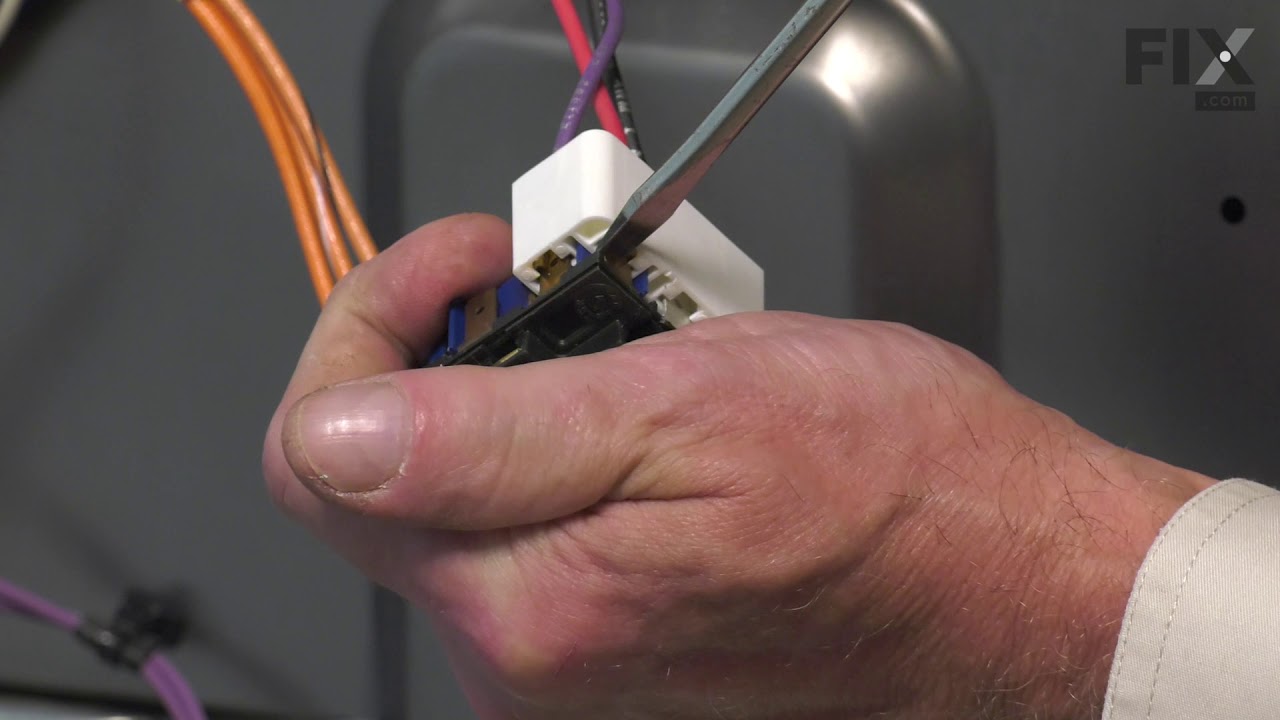

Replacing your Whirlpool Range Dual Element Control Switch
Customer Repair Stories
Bard burner switch
Removed rear panel disconnect power from wall removed old switch and replaced with new switch and reassembled
-
Edward from KISSIMMEE, FL
-
Difficulty Level:Easy
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Screw drivers
5 of 6 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Switch worked off and on but you could not set heat to a specified temperature.
Remove back panel 10 screws. Disconnect plug in fixture from switch. Front of range remove knob (it just pulls out) remove 2 screws, remove switch. To install reverse procedure.
-
Dale from POUND, WI
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
12 of 14 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Fixes Symptom 3% of time
This bake element is located at the bottom of the oven to supply heat and it has push-on terminals. If your baking element is burnt out, the heat is not consistent, or is defective, then replacing the element could be a solution to your appliance problem. The tools needed for this replacement are: a screwdriver and needle-nose pliers. The first step in is to unplug the range or shut off the house circuit breaker before starting. Unscrew the black of the oven cavity to pull out wires from the defective element. Reconnect wires to the new element and screw it back on. Make sure the element is sitting flat.
$
49.31
In Stock
PartSelect Number PS11752501
Manufacturer Part Number WPW10308477
Replacing your Whirlpool Range Oven Bake Element
Customer Repair Stories
Baking element on stove wouldn't heat
Went online and located the correct part, which I had shipped to me next day. The part arrived I removed the two screws which held the element in place, unclipped the two wire leads, then replaced old element with the new one, reattached wire clips then screwed new element in place. All done 10 min.
-
Reggie from Piedmont, SC
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
42 of 46 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
heating element burnt up
first I pulled the stove from the wall. Then unplugged the stove from the wall (electric stove) for safety. then I removed the middle back panel screws(2) and then the panel. I then pulled the wires off the heating element that was bad. I took the screws (2) off the heating element inside the oven. I had to use WD-40 to loosen the sc
... Read more
rews because with the heat they were really stuck. I removed the heating element and replaced it with the one I got through partselect.com. Put everything back and walla finished. Partselect.com sent me the right part at the right price and fast. No hassles at all.
Read less
-
Esther from San Antonio, TX
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
105 of 119 people
found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
