Parts That Fix Frigidaire Dishwasher FBD2400KW10B Not cleaning dishes properly
This lower spray arm assembly is a device in your dishwasher that distributes water and detergent during the washing cycle. Its rotating motion sprays water in multiple directions, ensuring thorough cleaning. Typically, it is attached to a support or hub at the bottom of the dishwasher. When this part is broken, there are noticeable signs to be aware of. You might hear knocking or banging sounds coming from the dishwasher. The spray arm may be wobbly or unable to rotate. If a broken arm assembly is not replaced, your dishes may still have dirt on them even after a wash cycle. Additionally, leftover food residue can result in an unpleasant smell within the dishwasher. To remove the existing arm assembly, simply grasp the center of it and lift it up so that it unsnaps from your dishwasher. Please note that this OEM-sourced part is sold individually.
Customer Repair Stories
-
William from Pittsburgh, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
The spray a ... Read more rm pops on and off with plastic tabs (?) at the base. You can lightly pry with a butter knife or simply wiggle it off. The new one popped right on. Easiest repair EVER.
-
Allison from Greenville, SC
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
This filter is for dishwashers. The filter removes food particles and debris from the water to prevent the drain from clogging. Follow the instructions in the manual when installing this part.
Replacing your Frigidaire Dishwasher Dishwasher Filter
Customer Repair Stories
-
JOHN D from ROCKPORT, TX
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Gary from NEW KENSINGTN, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
Located at the bottom of the dishwasher, this filter keep large particles of food and foreign objects away from the pump.
Replacing your Frigidaire Dishwasher Filter Base
This dishwasher heating element is not designed to heat the water that enters it, but is designed to maintain the heat of the water that enters the dishwasher. It is located on the bottom of the dishwasher. NOTE: Brass nuts are NOT included. Must be ordered separately.
Replacing your Frigidaire Dishwasher Heating Element
Customer Repair Stories
-
Christopher from EVERETT, WA
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Screw drivers, Wrench (Adjustable)
removed the c-clips holding element underneath
and put new one in. Hard part was figuring out
what was holding the element but since I still
had the schematic drawing we figured it out.
Saved a bunch on a repairman. After watching
my friend install the new eleme ... Read more nt I could probably
do it myself next time.
-
Jane from Port Charlotte, FL
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers, Wrench (Adjustable)
The single rack roller kit comes with one axle/clip and one wheel/roller. The rack wheel is designed to allow the rack of your dishwasher to roll in and out. If the rack will not complete this task, or you notice that your dishwasher is not cleaning dishes properly, you may need to replace the rack wheel. The single rack roller kit is made of white plastic, and clips to the dishwasher rack with the included axle/clip. Many of our customers have described this repair as easy, and you will not require any tools to complete it. Lower rack roller and bracket assembly, grey. Wheel has been updated. If wheel pictured is not like old one, you may need to replace all wheels.
Replacing your Frigidaire Dishwasher Wheel & Bushing Assembly
Customer Repair Stories
Got to say, I was pretty amazed that I received my order the following day! You guys are wonderful!
-
Marla from Columbia, TN
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Sandra from Mount Vernon, WA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
Fits between the lower spray arm and the filter.
This water inlet valve is for dishwashers. Water inlet valve supplies water to the dishwasher. Unplug the dishwasher and shut off the water supply before installing this part
Customer Repair Stories
-
Cyril from WAYNESFIELD, OH
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
Turned off the breaker for the dishwasher. Turned off the water supply valve. Unscrewed the screws in the panel that hides the parts under the dishwasher. Unscrewed the screws anchoring the dishwasher to the counter. Slid the dishwasher out about a foo ... Read more t. Inlet valve was located on the front left side of the dishwasher. Unclipped the wire harness. Placed a cookie sheet under the water line. Unscrewed the water line from the inlet valve. Unscrewed the two Phillips head screws holding the valve to the dishwasher frame. Got the new part. Put the screws back into the frame. Reconnected the water line and wire harness. Slid the washer back into place. Turned on the water valve. Watched for leaks. Turned the breaker back on and started the cycle. Watched for leaks. Once I saw there weren’t any replaced the screws anchoring it to the counter and replaced the cover on the bottom. That was it! Took me longer to type out the steps than it did to actually do the repair.
-
CHERI from CREEKSIDE, PA
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers, Wrench (Adjustable)
This grey OEM dishwasher tub gasket is a 73" grey rubber part that creates a seal around the dishwasher to prevent any water leakage during a cycle. If it's damaged or broken, you'll start seeing water leaking out. If broken, it should be replaced. Refer to your model number and user manual to ensure this part is right for you. When making this repair, open the dishwasher door and take out the lower dish tray for better access. Pull out the old gasket, and clean the channel with a rag. Push the new gasket into place into the notch on the door, which you should see upon close inspection, using a flat-head screwdriver for assistance if necessary. We do not recommend cutting any additional length off on the tub gasket if any is present during your repair.
Replacing your Frigidaire Dishwasher Dishwasher Tub Gasket (Gray)
Customer Repair Stories
Water leak solved...
-
John from Hummelstown, PA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Charles from Milton, FL
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
This is the replacement detergent dispenser for your refrigerator. It is gray in color and is sold individually. It is approximately 8.5 inches long and 3 inches wide. The detergent dispenser stores the detergent until it is ready to be dispensed. If your dishes are not coming clean, or you notice the detergent is still in the dispenser at the end of the cycle, you may have a damaged or malfunctioning detergent dispenser. This is an OEM part sourced directly from the manufacturer.
Replacing your Frigidaire Dishwasher Detergent Dispenser
Customer Repair Stories
-
Tim from MARINE ST CRX, MN
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
-
Bernard from ACUSHNET, MA
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
If your dishwasher is leaking or not draining properly, you may need to replace the drain hose. The drain hose connects to the pump located below the lower spray arm and aids in proper dishwasher drainage. This white and black plastic hose is 7.5 feet long. For this repair, you will need either a 1/4-inch or 5/16-inch nut driver, depending on your model. You will need to remove the lower access panel on your dishwasher to complete this repair; it is often easier to remove the dishwasher from the cabinet to do so. Be sure to disconnect the dishwasher from both the power and water supply before completing this repair.
Replacing your Frigidaire Dishwasher Dishwasher Drain Hose
Customer Repair Stories
-
Lee from Columbus, OH
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
-
John from Carthage, MO
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers, Wrench set

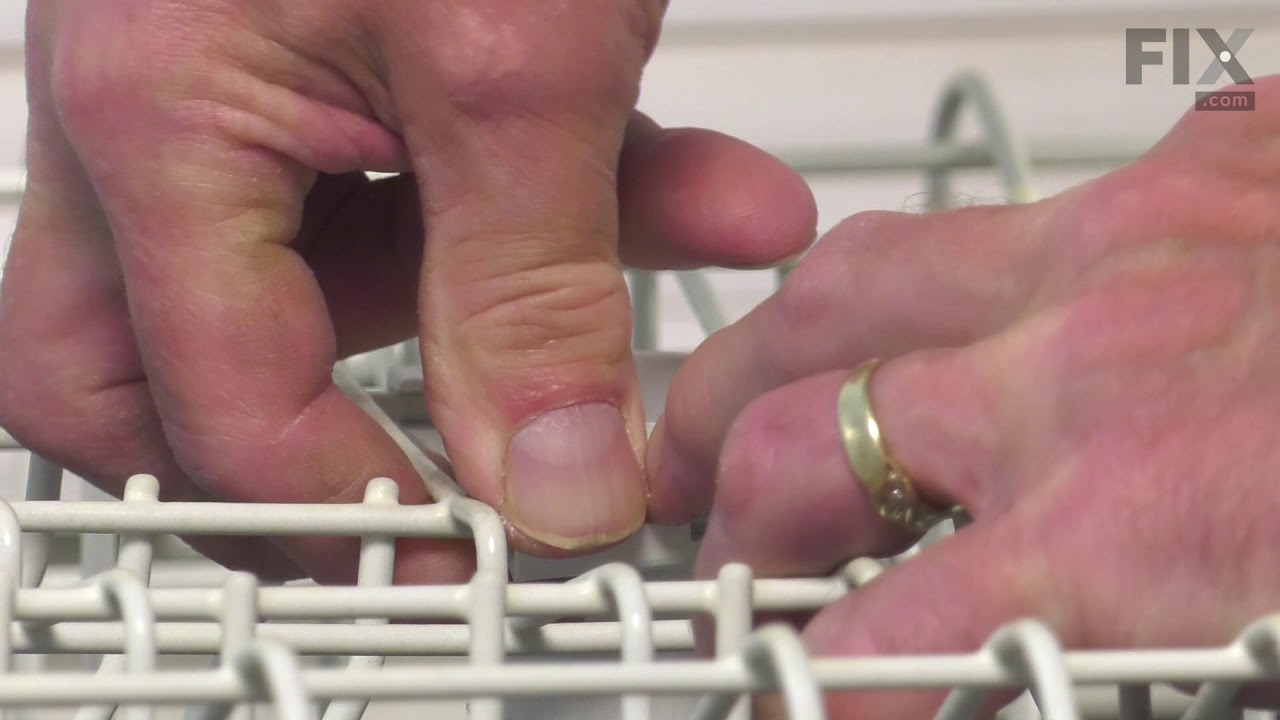

Replace your damaged upper dishrack with this durable and genuine OEM replacement, compatible with select Frigidaire, Electrolux, White Westinghouse, and Tappan dishwashers. Its grey finish and sturdy construction ensure secure dish placement and optimal cleaning performance. Check your model number for compatibility before ordering.
Replacing your Frigidaire Dishwasher Upper Rack Assembly (Grey)
Customer Repair Stories
-
Ron from OAKLEY, CA
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
