Parts That Fix KitchenAid Dishwasher KUDC10FXSS5 Not cleaning dishes properly

Supplies water from the main water feed tube to the middle manifold water tube.

This part includes the third level wash spinner.

The circulation pump and motor is located near the bottom of the dishwasher. The part functions by spinning the impeller of the circulation pump, which is used to move the water through the spray arms during the wash cycle. Before you begin this repair, it is recommended that you pull your dishwasher out of the cabinet, so you can tip the dishwasher to one side and gain better access to the circulation pump and motor. Be sure to disconnect the power source and the water source to the dishwasher before you begin this repair. To complete this repair you will need a 1/4 inch nut driver and a 3/8 inch nut driver.

Measures level of soil in the water.

The heating element is not designed to heat the water that enters it, but is designed to maintain the heat of the water that enters the dishwasher. It is located on the bottom of the dishwasher.

Water is supplied to the lower spray arm via the pump assembly.

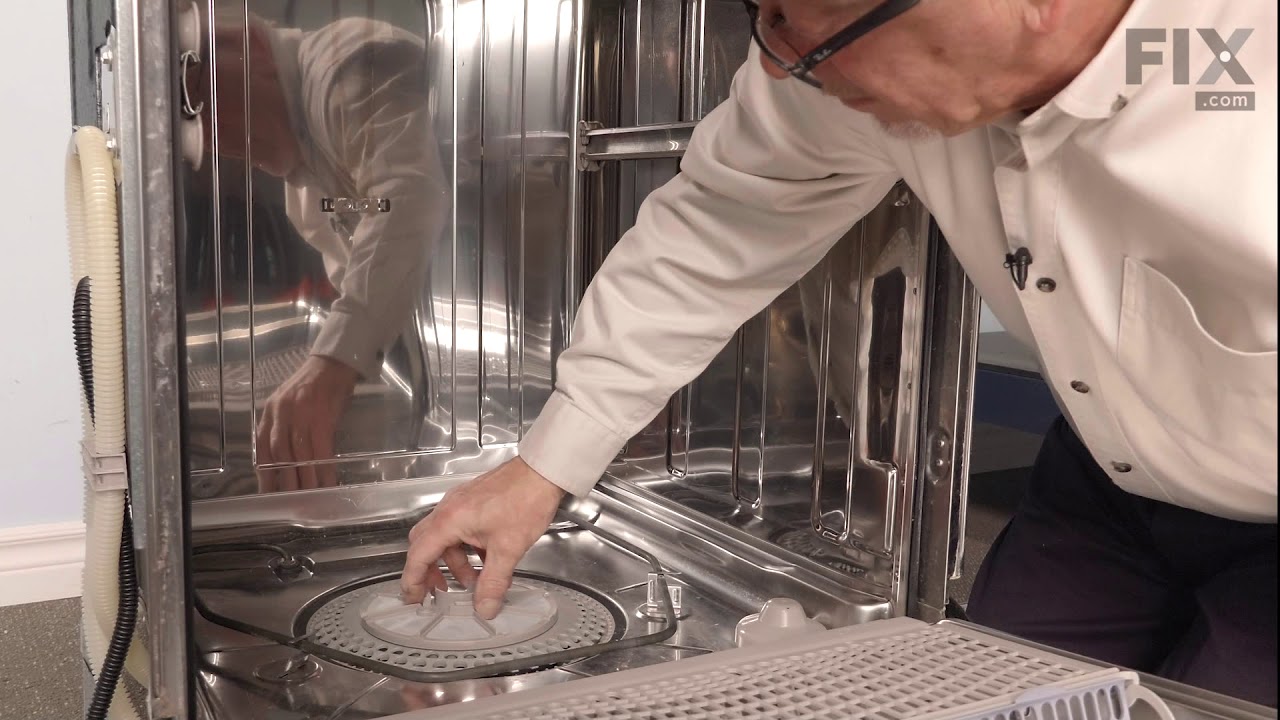

This part is essential in your dishes getting clean during the wash cycle. If there is any debris or a tear in the filter, it can cause extra buildup and, therefore, causing dirty dishes.

This OEM gray Dishwasher Lower Dishrack Wheel Assembly is a plastic kit that allows the rack to slide in and out of the dishwasher easily. If it breaks or becomes damaged. sliding will feel difficult. This can happen due to normal wear and tear, and the part should be replaced if this occurs. Check your model number and user manual to make sure this part is correct. It attaches directly to the dishrack. To repair, open the dishwasher door and pull out the lower dishrack. Next, push the tab from both sides and it should pop out. To install the new wheel assembly, place it on the rack and make sure the caps overlap the wire from the inside before you clip it in place by pushing the wheel. It measures roughly 3x6 inches.

Also known as a water supply tube which is used for your middle spray arm.

This part moves water up from the sump collection area and up through the spray arms.

The spray arm in your dishwasher spins and sprays the water that is used to clean your dishes. If the spray arm is damaged, your dishwasher will not clean properly, and you will need to replace it. Many of our customers have rated this repair as easy, and to complete the repair you will simply need to unscrew the old arm, and replace it with a new one. Make sure the jets are facing upward when you secure the new arm. This part is made of gray plastic and is approximately 18 inches wide.

Sold individually.

Sold individually.

This part is used to cover the chopper blades.

This dishwasher water inlet valve regulates the flow of water into the appliance during each cycle, helping ensure proper filling and efficient operation. If your dishwasher is leaking, overfilling, or not filling at all, this component may need to be replaced. Designed for compatibility with a wide range of models, it offers reliable performance and a secure fit. To ensure the correct part, always verify your dishwasher’s model number before ordering, as similar-looking parts may vary in size or shape. Before installation, disconnect the appliance from its power source and wear protective gloves for safety.

Sold individually.

This genuine OEM thermostat is sourced directly from the manufacturer to ensure compatibility with your dishwasher model. The thermostat monitors and regulates the temperature of the dishwasher heating element. It is responsible for ensuring that the water temperature reaches the optimal level for effective cleaning while also helping to prevent overheating and potential damage to the internal components of the dishwasher.

The rubber washer is a part which is specific to dishwashers and should not be substituted by a similar part. It works with the heating element to seal the receptacle opening where the heating element is attached. The rubber washer is used to prevent water leaking from your dishwasher during its cycle. Before making any repairs to your dishwasher make sure that you disconnect the power by finding the breaker for the dishwasher, and turning it off. The tools you will need to complete this repair include an adjustable wrench, and a 1/4 inch nut driver. This specific rubber washer is sold individually.

The lower spray arm hub sits inside the dishwasher at the base, and feeds water into the lower spray arm. The arm hub is made of plastic and measures 3 inches long by 1.5 inches wide. If the spray arm becomes loose, or does not spin freely, check for damage to the spray arm hub. This is a genuine OEM replacement part sourced directly from the manufacturer.

This drain pump is used in dishwashers to remove water from the dishwasher tub. If the impeller in the dishwasher is damaged or the motor has been shorted out and will not drain, it is possible the body is cracked, causing leakage. To prevent this from happening, replace the drain pump. The tools needed for this installation are: Phillips screwdriver, 5/16 inch nut driver, 5/8 inch wrench, and a flathead screwdriver. Remember to unplug your dishwasher from the power source before beginning this installation project. Refer to the manual provided by the manufacturer for further installation instructions.

This drain hose is 6 and 1/2 feet.

Introducing the Whirlpool Dishwasher Detergent Dispenser, an authentic OEM part designed to perfectly fit your appliance. This detergent dispenser is crafted to operate with various Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef dishwasher models. Acting as a reservoir, it effectively holds your dishwasher detergent and rinse agent in secure compartments. Wait for the dishwasher to be unplugged and water supply shut off before setting up this component. As an added safety measure, it's recommended to wear work gloves during the installation to protect your hands. With this dispenser, you'll be enhancing your dishwasher's performance, ensuring cleanliness for every cycle.

This part is used to drain water from your dishwasher.

This part forces the water from the pump to the sump area for discharge.

This part is the replacement upper spray arm retainer or mount for your dishwasher. It is made of gray plastic and is approximately 4 inches by 3 inches. The upper spray arm mount attaches the spray arm to the water supply manifold. If the mount is loose damaged, you may notice that the spray arm wobbles, or possibly hangs from the top of the dishwasher. If this is the case, the mount may need to be replaced. If your dishes are not being cleaned properly, you may want to inspect the mount to ensure that it is not loose, disconnected, or damaged. This part is sold individually and is an authentic OEM part.

This manufacturer-approved Rack Stop Clip is a gray plastic part which can be installed with a screwdriver. Measuring slightly over an inch in length, it prevents the rack from sliding too far and falling off. If broken or damaged, then the rack will slide too far and this is a sign the part should be replaced. It attaches to the end of the top dishwasher rack. This clip can be used for the left or right side, and is sold individually. It is a good idea to replace both sides at once. To make this repair, start by pulling out the rack, then, using your screwdriver, reach in behind the rack stops and press the clips in. You should be able to remove the stops from the track from here. Next, you should be able to slide the track back over the rollers and snap the new track stop into place.
