Parts That Fix Frigidaire Refrigerator LFSS2312TF2 Ice maker not making ice

The function of the Refrigerator Water Inlet Valve (Triple Solenoid Water-Valve, Water Valve, Water Inlet Valve, Refrigerator Water Inlet Valve Assembly) is to release water from the supply line when activated, and send it through to your water dispenser or ice maker in your refrigerator. The water inlet valve is located at the back of the refrigerator, and connects to the water supply. The valve can break from material fatigue or normal use. If your water inlet valve is malfunctioning, you could be getting a lack of water to the inside of your refrigerator. Your ice maker may not produce cubes or your water dispenser may not work. The water inlet valve must be replaced if the solenoids no longer have continuity or the valve has internal blockage. This valve measures approximately 7 inches long and 4.5 inches wide, and is constructed of plastic and metal. It comes in blue, and includes the valve and mounting bracket.

This ice container assembly is a genuine OEM replacement part for your refrigerator. This kit includes the container that holds the ice, along with the auger and blades. Replacing this assembly is an easy repair that does not require any tools. First turn the ice maker off, then remove the old container from the freezer. Line up the connector with the auger yoke, then slide the new container into place. The ice maker can be turned back on, and you will be all set.

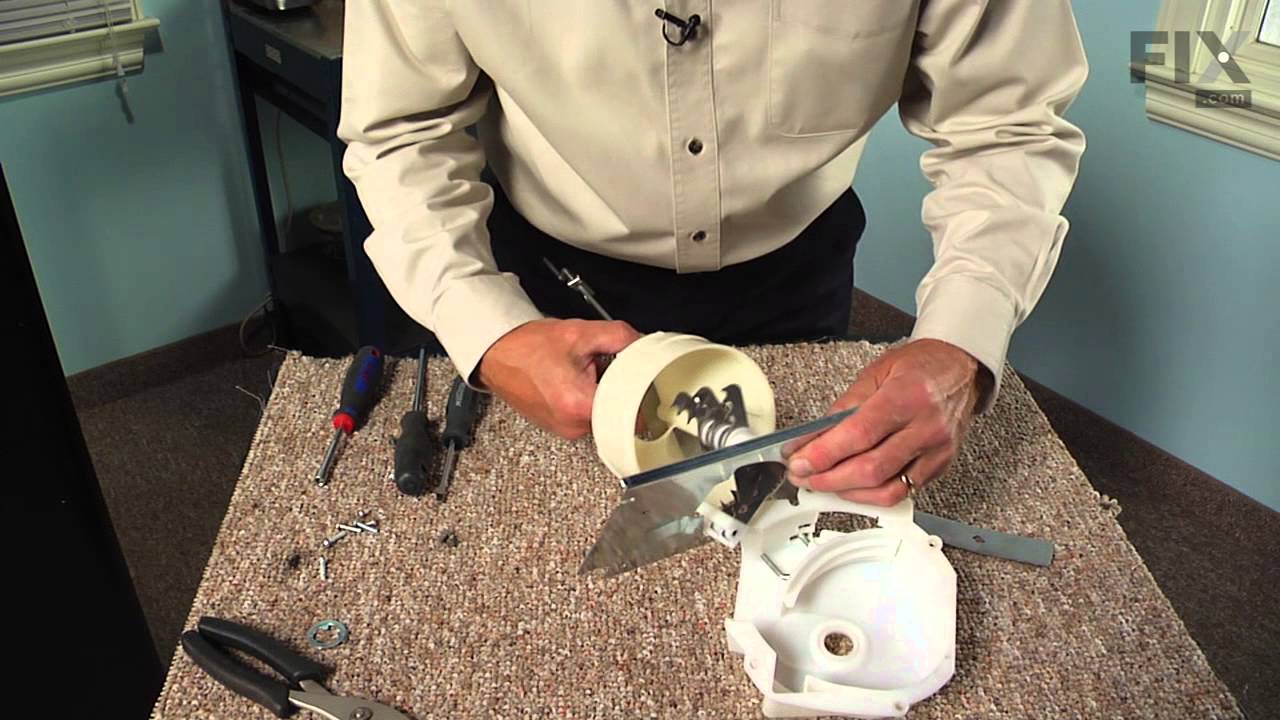

This dispenser crusher housing may also be known as a refrigerator ice crusher housing, and is compatible with your refrigerator. The function of the dispenser crusher housing is to shield the ice crushing blades within the ice container. To make this repair you will need a Phillips screwdriver, a flat blade screwdriver, a quarter-inch nut driver, and a pair of channel lock pliers. For this installation, work gloves are recommended. Note that this piece may look different or be a different color than the original, but this part will fit and function in the same way as the original part.

This genuine OEM ice container, also known as an ice bucket, is designed for use in refrigerators to store ice cubes. It should be replaced if it develops significant cracks or breaks that could affect performance. To remove the container, open the freezer door and lift it out, ensuring the ice maker’s shut-off arm is in the off position. Transfer the front panel, access door, shield, crusher assembly, and auger assembly from the old container to the new one—without disassembling the crusher and auger assembly, if possible, to simplify the process. When aligning the control rod, make sure one set of crimps sits in front of the crusher assembly plate and the other behind it. To secure the other end, hook the spring around the tab at the bottom of the container and tuck the bracket behind the tab. Engage the rod’s hook by rotating it into the flapper door. Reinstall the front panel and access door by aligning the holes and fastening them in place. Finally, snap the guard back onto the side rails of the bin, ensuring the ridged edge faces forward. Please note that this replacement part includes only the ice bucket; additional components must be purchased separately.

This genuine replacement ice dispenser drum is designed for use with a wide range of refrigerator models. Made from durable plastic, the drum plays a key role in your ice maker by capturing ice and directing it to the crusher for dispensing. It is positioned between the ice dispenser drive plate and the ice crusher mounting plate, ensuring smooth and efficient operation. If the drum becomes damaged or worn, replacing it is a simple process. All you’ll need is a Phillips head screwdriver. Just remove the necessary components to access the drum, unfasten it, and install the new one in its place. This part is sold individually and is compatible with many refrigerator models—check your model’s diagram to confirm fit.

This is a water fill tube which is used in refrigerators. It attaches to the water inlet valve and supplies water to the components in your appliance that need it, such as the icemaker and water dispenser. You will need to replace your fill tube if you notice it is leaking or damaged. This replacement tube is approximately 7 inches in length, and it is made entirely of plastic. The fill tube is sold individually. Before you begin repairing your refrigerator, make sure the water supply has been turned off and that the appliance has been unplugged.
