Parts That Fix Maytag Washer MVWB300WQ1 Leaking
This pump helps expel water from the washing machine and is activated after the spin speed is maintained for a specific period of time.

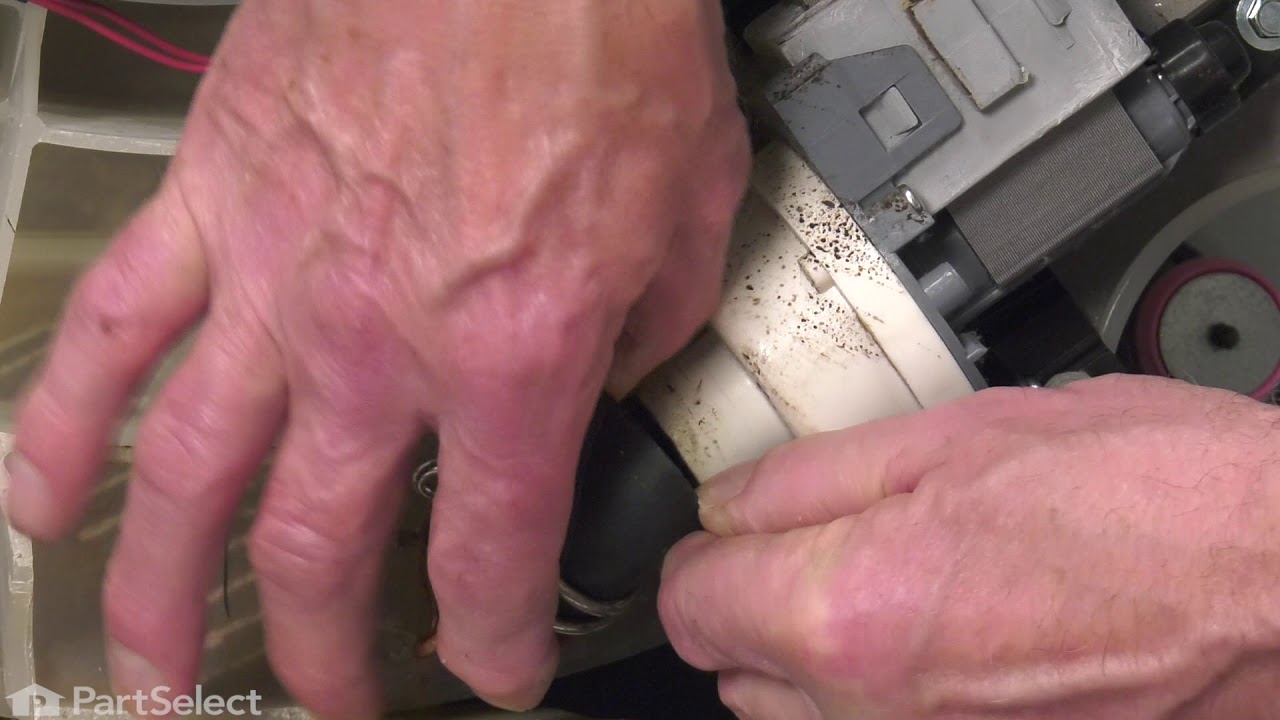

Replacing your Whirlpool Washer Washer Drain Pump
Customer Repair Stories
I saw where a person had put the screws in the filter below the tub. I had to find the clips on the front of the machine, (about 7 in in from the sides) I removed the nut cover on the agitator, used a socket to remove the agitator, tub, and a nut driver to remove the filter. I found 3 areas where coins could get through the drain filter, and I used self tapping screws to make an obstruction that water could get through but not the coins. I reinstalled tub. Before re installing the agitator, I got some fiber glass window screening and cut a piece to go over the drain slots in the bottom of the tub but under the agitator, then reinstalled the agitator.
I noticed that the new pump had more re enforcing at the areas where the 1st pump broke. I doubt that it will break, but I am not taking any chances. I put the screen in to prevent the coins from getting to the drain filer 1st and the back up was the screws in the drain filter.
-
Kerry from Alleyton, tX, TX
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Pliers, Socket set
Tip washer back up, use the putty knife to pop the top cover up (clips are about 6.5in in from sides). Unclip the white plastic cover ... Read more over the outer and inner tubs. Pop the center cap from inside the inner tub, exposing the bolt holding the inner tub down. Remove bolt, pull inner tub up and out.
At bottom of outer tub remove 2 screws from drain access cover, should find some change under there (or in the pump).
Re-assemble using new pump.
Note:
Before new pump arrived I was able to use some silicone sealant, epoxy, and black tape to temporarily fix the cracked pump housing after pulling it out.
-
ROBERT from BARRINGTON, IL
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver, Socket set
This hose clamp is used in a wide variety of household appliances. Most often it is found in washers, dishwashers, refrigerators, freezers, dehumidifiers, garbage disposals, or air conditioners. This clamp is used to securely attach a hose to another part of your appliance, which helps prevent leaks from those connections. Depending on the appliance, it can attach hoses to drain pumps, water inlet valves, pressure switches, and injector nozzles. We recommend you refer to model-specific diagrams for appropriate uses and exact placement. This hose clamp is made of metal, and is sold individually. To access and replace this part you will need a nut driver, pliers, and screwdrivers. Before you begin any repair work, make sure you have unplugged your appliance, and shut off the water supply if applicable.
Replacing your Kenmore Washer Washer Hose Clamp
The hose clamp is used to hold the water hose in place which will prevent the hose from leaking water. Sometimes the clamp may lose its ability to latch on, causing a leaking washer. For the installation, you will need a flat head screw driver to replace the clamp and a drill to access the screws to remove the front of the washer. Be careful if you do not have specific clamp pliers as the clamp could fly off. Once the front of the washer has been removed, take a quick look for water damage or any obvious signs of where the leak is coming from. If it is not obvious, run water to test.
Replacing your Kenmore Washer Washer Hose Clamp
Introducing a genuine and exclusively crafted Whirlpool product, the Drain Pump Hose. Providing optimal functionality, this robust and reliable hose is designed to efficiently carry the used water from your washer to your house drain, all while guaranteeing a hassle-free installation process. It's important to shut off the water supply and unplug the washer before installing, don't forget to wear your work gloves for added hand protection. As a genuine OEM part, it is compatible with select models of Whirlpool, ensuring perfect fit and performance. Despite visually similar parts on the market, exact size and shape may vary slightly. Trust Whirlpool for a durable and reliable appliance solution.

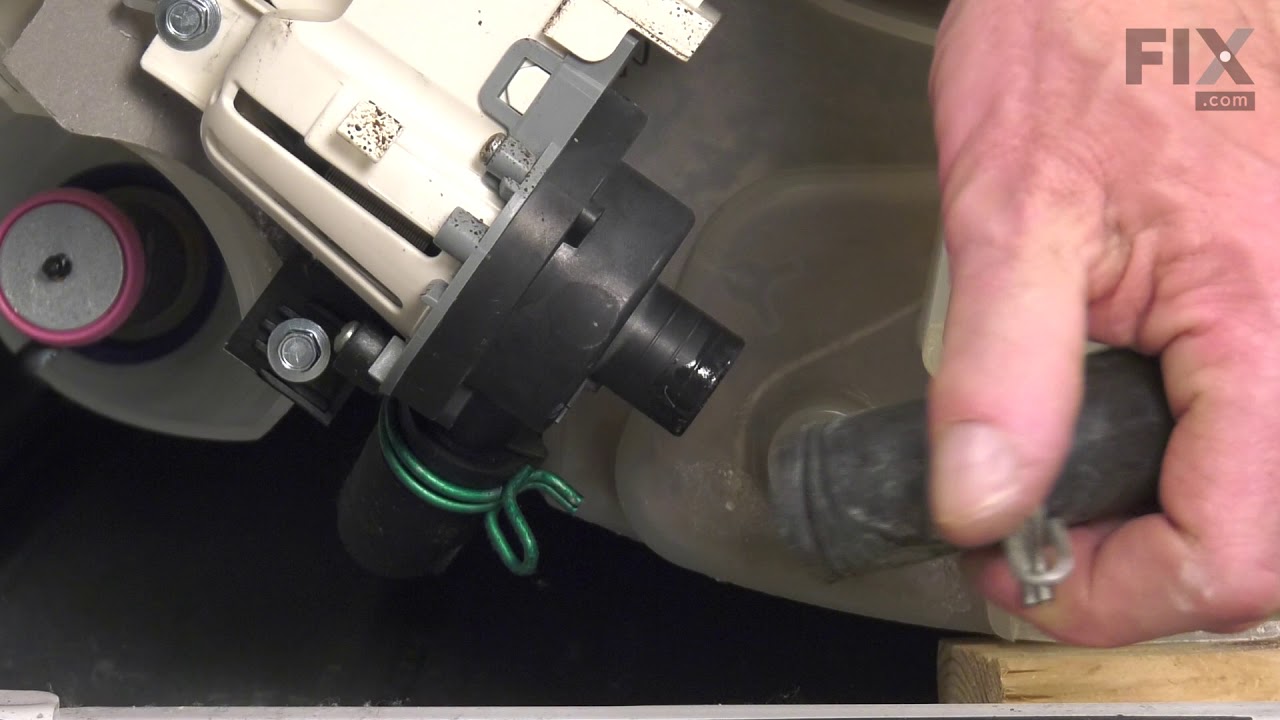

Replacing your Whirlpool Washer Washer Hose Drain Pump
This kit includes one driver hub and two driven basket hubs. The basket hub is located under the agitator. If your washer is not agitating or spinning properly, the hubs will need to be replaced.
Replacing your Whirlpool Washer Washer Basket Hub Kit
Customer Repair Stories
-
Theresa from WALFORD, IA
-
Difficulty Level:Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Pliers, Screw drivers
-
Kevin from CLARK, MO
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers, Socket set
Discover the genuine OEM Recirculating Pump Hose from Whirlpool, a perfect solution for your washing machine repairs. This hose is designed to facilitate water transfer between the recirculation pump and the wash tub, bolstering efficiency. To ensure safety during installation, remember to shut off the water supply and unplug the washer. Wearing work gloves might be helpful to protect your hands during setup. Please bear in mind, parts may visually resemble each other, yet size and shape can slightly differ. So, verifying the compatibility with your Whirlpool model is highly recommended before purchase.
Replacing your Whirlpool Washer Washer Hose Recirc Pump
This kit includes the shaft, 3 bearings, seals , grease, adhesive and the spanner nut, which is NOT sold separately. Also may require a bearing driver tool to install. PS3503307
Customer Repair Stories
-
Daryl from Devils Lake, ND
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Tools:Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
-
DENNIS from OELWEIN, IA
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
This water inlet valve attaches the water lines to the back of your appliance. The attaching solenoids on the valve open and close according to the desired temperature, or amount of water needed.
Replacing your Whirlpool Washer Water Inlet Valve with Wire Harness
Customer Repair Stories
-
James from Farmington, NM
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers, Socket set
If your clothes washer is leaking, it is likely that there could be an issue with one of the hoses. If the hoses are in working order, you should check the washers connecting the hose to your unit. Rubber washers are tasked with enhancing the seal between the hose and washer. A faulty or damaged washer will not be able to perform this properly, and water will be able to leak from the poor connection. This OEM part is sold individually, so make sure you order the quantity that is needed. The washer measures 1 1/16 inches x 5/8 inches.
This hose can handle hot or cold water and is five feet long.
Replacing your Kenmore Washer Washer Inlet Hose 5 Ft
Customer Repair Stories
-
Jimmy from MEMPHIS, TN
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Pliers
-
Helen from NASHUA, NH
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
Introducing a high-quality drain hose designed specifically for Whirlpool washing machines. This authentic OEM part is an essential component for ensuring the smooth operation of your laundry unit. This expertly-engineered drain hose seamlessly carries used water from your washer to your house drain. Prior to installation, ensure you have shut off your water supply and unplugged your washing machine. Remember to use work gloves to protect your hands throughout the installation process. Trust and choose only Whirlpool's reliable and durable parts for optimal machine performance.
