Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

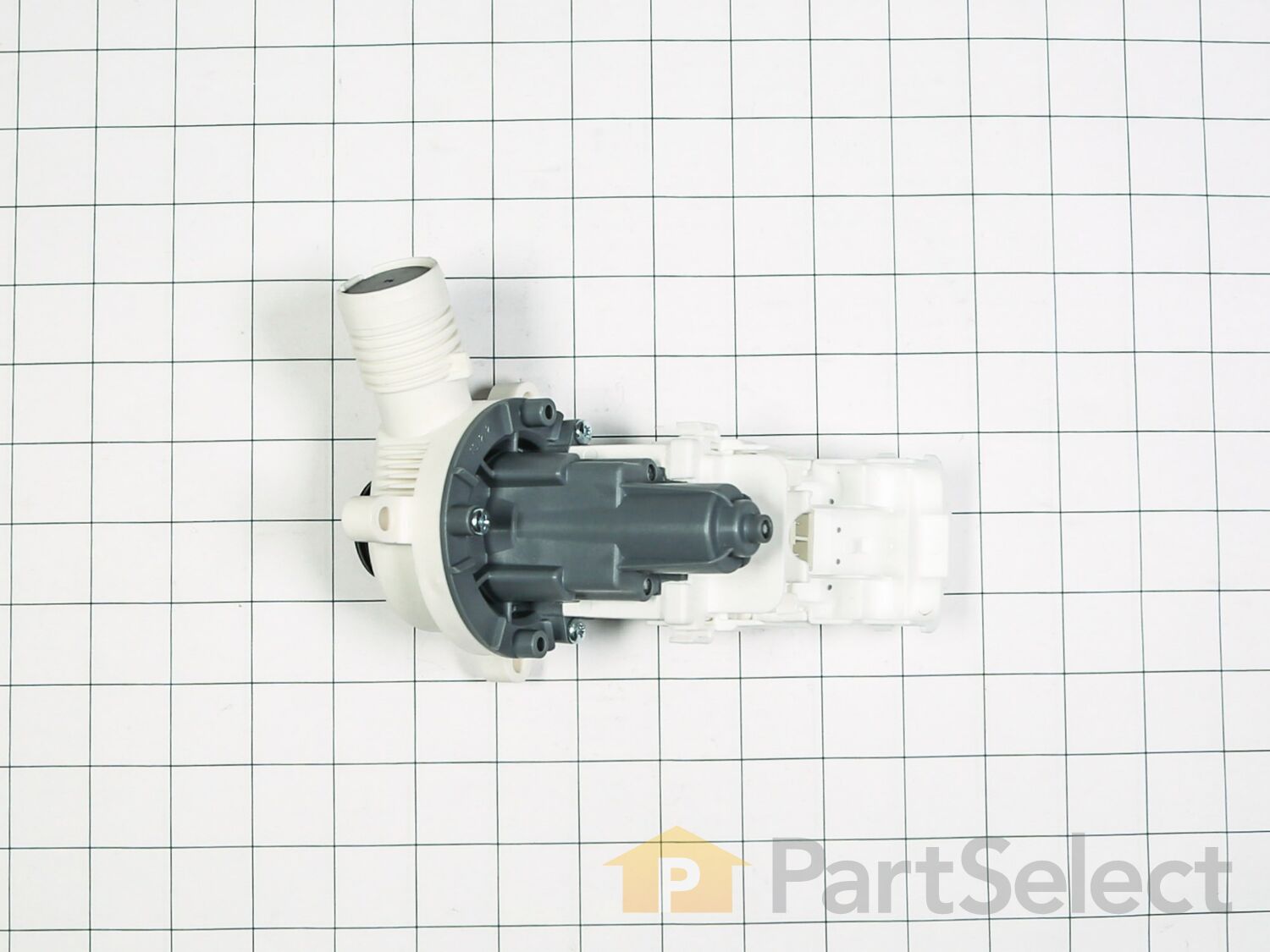

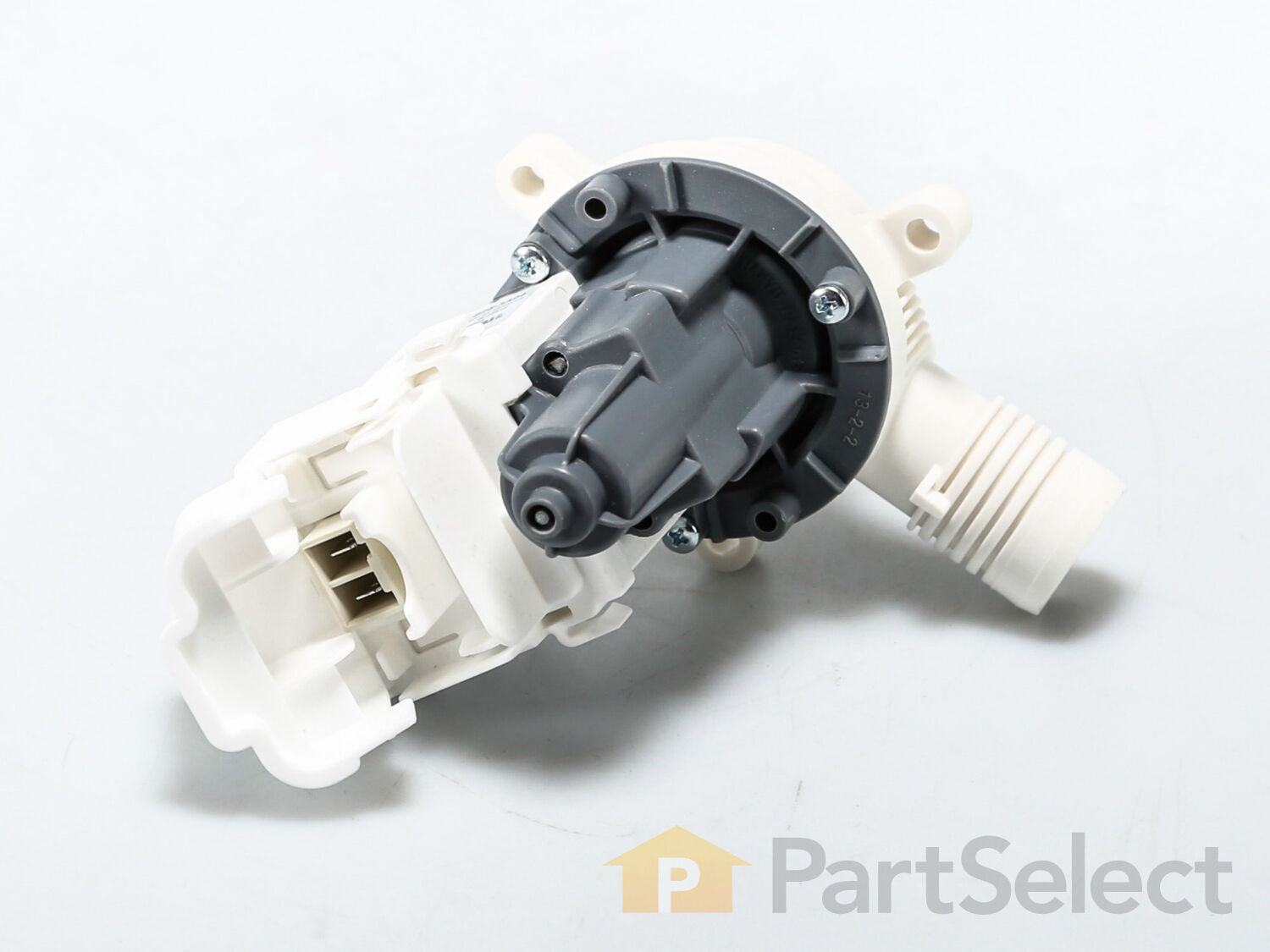

Introducing the Whirlpool Drain Pump Assembly - a crucial component for your washing machine's functionality. Expertly engineered, this water pump is compatible with several Whirlpool models, enhancing its versatility. This pump plays an integral role, effectively removing water from your washer during the drainage part of the cycle. To ensure safety, it is recommended to unplug your washer prior to this part's installation and you may want to put on work gloves to shield your hands. Trust in this genuine OEM part's quality and consider enhancing your washer's performance with this excellent water pump. Opt for Whirlpool for your appliance parts needs and benefit from their reputation for reliability and excellence.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Jeff J - April 26, 2024
Verified Purchase
Exactly what I needed
Easy to order part and works great.
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Steven
October 21, 2024
it is draining nonstop
For model number WTW4855HW3
Hi Steven, Thank you for asking. There are a few things that could cause this issue. First we suggest resetting the appliance. Unplug your washer and shut off the water supply and then turn the water supply back on and plug the appliance back in. We also suggest checking the drain hose and pump for an obstruction. Make sure that the house drain pipe is at least 30 inches high. If so, check to make sure the drain hose is not pushed too far down into the drain. No more than 5 to 7 inches of the drain hose should be down into the drain pipe. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Alfonso
July 13, 2021
Washer doesn’t drain just makes a humming noise
For model number NTW4516FW3
Hello Alfonso, Thank you for the question. This is normally caused by a defective Drain Water Pump PartSelect Number PS11770076. We hope this helps!
Was this helpful?
Thank you for voting!
Andrew
August 25, 2023
Machine is apparently leaking around the drain pump seal. Is the seal available for purchase separately from the pump. The pump works fine, just a leak around the seal.
For model number Mvwc465hw2
Hello Andrew, thank you for the question. According to our research, the seal is not available separately. You need to replace the drain pump, part number PS11770076. Good luck with this repair!
Was this helpful?
Thank you for voting!
JILL
June 13, 2024
I can hear it start but no water fills
For model number NTW4519JW2
Hello Jill, thank you for contacting us. According to our research, the issue is most probably with the water inlet valve, part number PS11773194. You may need to replace it to fix the issue. We hope this sorts out your problem!
I was told that if the water isn’t coming out of my machine that I need to replace the pump, is that correct?
For model number Wtw4816fw2
Hello Shakari, thank you for asking. According to our research, this pump, part number PS11770076, will likely fix your issue. Please reach out to customer service if you need help placing an order. Glad to be of help!
Was this helpful?
Thank you for voting!
Teresa
December 28, 2024
Washing machine, keeps running like it's draining out water. But, there's no water in it. Do I need a drain pump?
For model number WTW4616FW3
Hi Teresa, thank you for contacting us. We would suggest checking the drain hose for clogging first. If it is fine, the issue could be with the drain pump, part number PS11770076. You may need to replace it to fix the issue. We hope this sorts out your problem!
Was this helpful?
Thank you for voting!
Allan
March 14, 2025
Pump seems to be running non-stop. Water starts to fill, but runs right out, which prevents the machine from cycling past auto-fill. What's happening?
For model number WTW4955HW3
Hello Allan, thank you for reaching out. Based on your description, it sounds like the washer is experiencing an issue with continuous draining, which is preventing it from completing the auto-fill cycle. This could be due to the drain pump might be malfunctioning, causing it to run non-stop and preventing the washer from holding water. We would recommend checking it, the part number is PS11770076. We hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11770076
Manufacturer Part Number: W10919003
