Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

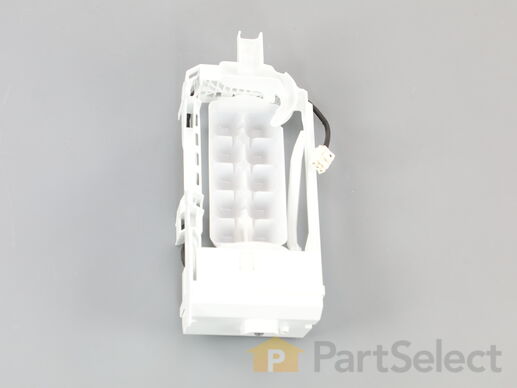

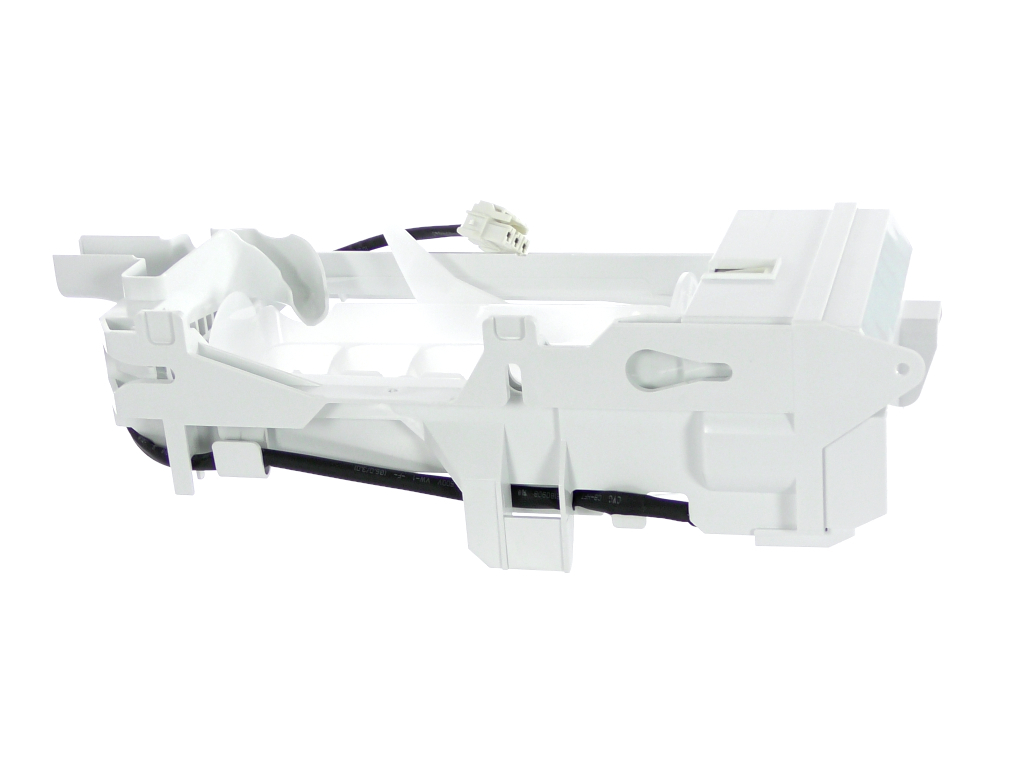

This Ice Maker Assembly, compatible with select Frigidaire, Electrolux, and White Westinghouse models, features a plastic flex tray for efficient ice production. It includes an ice mold and control device to ensure automatic freezing and ejection of ice cubes. Replace this part if your refrigerator stops making ice or produces irregularly shaped cubes. Unplug the refrigerator and wear gloves for safe installation.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
ALAN S - March 25, 2023
Verified Purchase
Ice maker replacement
It was the identical part. Fast shipping. Fit perfectly. If the 2 screws inside the refrigerator were easier to access installation would have literally taken only 15 minutes. You can’t visualize the screws, you have to feel for them. As it was it took about 40 minutes to complete the task. Anyway, it’s working fine now and I would use your service again. Thanks.
★★★★★
★★★★★
Joshua C - December 12, 2023
Verified Purchase
Worked perfect
Easy to install. Direct replacement. Once installed reset unit and was making ice in less than two hours.
★★★★★
★★★★★
NEIL B - January 11, 2024
Verified Purchase
Works perfectly
Easy to install
★★★★★
★★★★★
John A - October 20, 2023
Verified Purchase
Easy peasy!
Came fast, easy to install!
★★★★★
★★★★★
Jim M - February 18, 2024
Verified Purchase
Keeps Up With Demand
So far, so good. It's nice to have a full ice bin again.
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
6 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Harry
December 8, 2023
Just received this refrigerator today. The sending arm on the ice maker is not down. How do I get it to come down and should it remain down at all times? Thank you
For model number GRMG2272CF00
Hello Harry, thank you for your inquiry. According to our research, you may need to remove any item or frozen clump of cubes that may prevent the signal arm from lowering down to check the ice level in the bin. Additionally, be sure the bin is in its properly installed position. Before the cubes are ejected, the signal arm lifts up, and after the cubes are ejected, the signal arm drops down again to sense the ice level. We hope this information is useful!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Cade
August 21, 2023
The little plastic arm that goes down snapped when I was putting the ice bucket back inside after cleaning. Is there a replacement part # for it? The handbook has it listed as #2, but that's the whole unit, and I just want to replace that plastic arm piece.
For model number frss2623aw0
Hello Cade, thank you for contacting us. According to our research, the plastic arm that you are looking for does not come separately. You may need to replace the ice maker assembly, part number PS16745549, to fix the issue. We hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Richard
February 11, 2025
My ice maker stopped making ice. My water dispenser is working with no problems. If I push and hold the little green button in on ice maker to the right of the power button , it will fill ice maker cube tray and freeze and dump ice into bucket.
Any ideas ?? Also how do you reset the ice maker.
Thanks
For model number FRSS2323AB0
Hello Richard, Thank you for contacting us today. The button on the Ice Maker is the way to reset it. You can also try to cut power to the appliance for 5 mins to reset the appliance. If this does not fix the issue, you may have a faulty Ice Maker. We hope this information is useful!
1 person found this helpful.
Was this helpful?
Thank you for voting!
David
March 25, 2023
Ice maker working but it wont dump the ice.
For model number FRSS2323AS0
Hello David, thank you for getting in touch. One of the most common causes of an ice maker that won’t dispense ice is that an ice clump has formed inside. In order to remove ice chunks, you will need to go inside your ice container and remove them. If the container is not working, replace the ice container, part number PS16543843. Just like the ice container, it is just as likely that your ice chute is jammed when you press the lever and discover no ice comes out. Replace the dispenser module, part number PS16227297. Also check the auger motor, part number PS16227311, to fix the issue. We hope this helps, good luck with this repair!
Hello Michael, thank you for contacting us. The ice maker, part number PS16745549, you have mentioned is compatible with your model. We hope this helps!
Was this helpful?
Thank you for voting!
Becky
January 8, 2025
my ice maker is no longer working, the arm has broken off. Is the arm a part of the icemaker replacement part?
For model number FRSS2623AS1
Hello Becky, Thank you for writing. The Arm is only sold as part of the Ice Maker assembly, so the Ice Maker will need to be replaced. Thank you for the inquiry, good luck with the repair!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS16745549
Manufacturer Part Number: 5304532555
