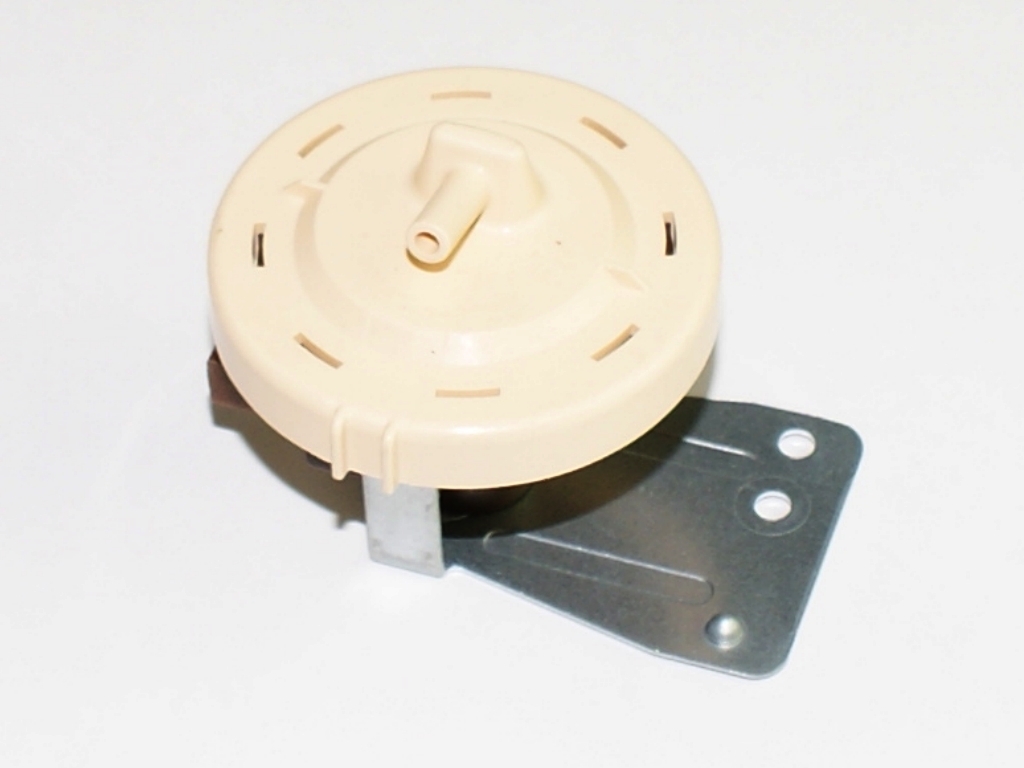

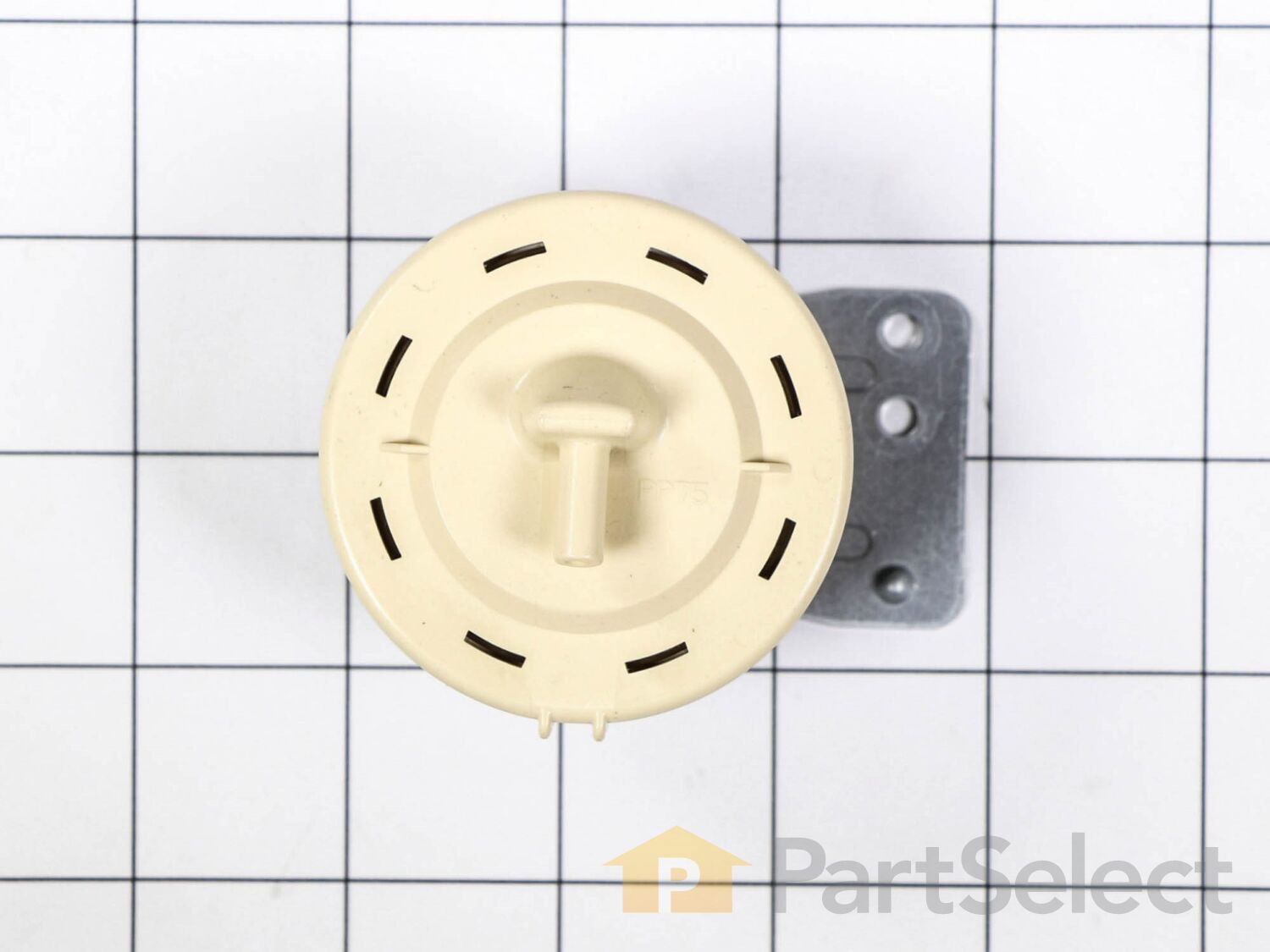

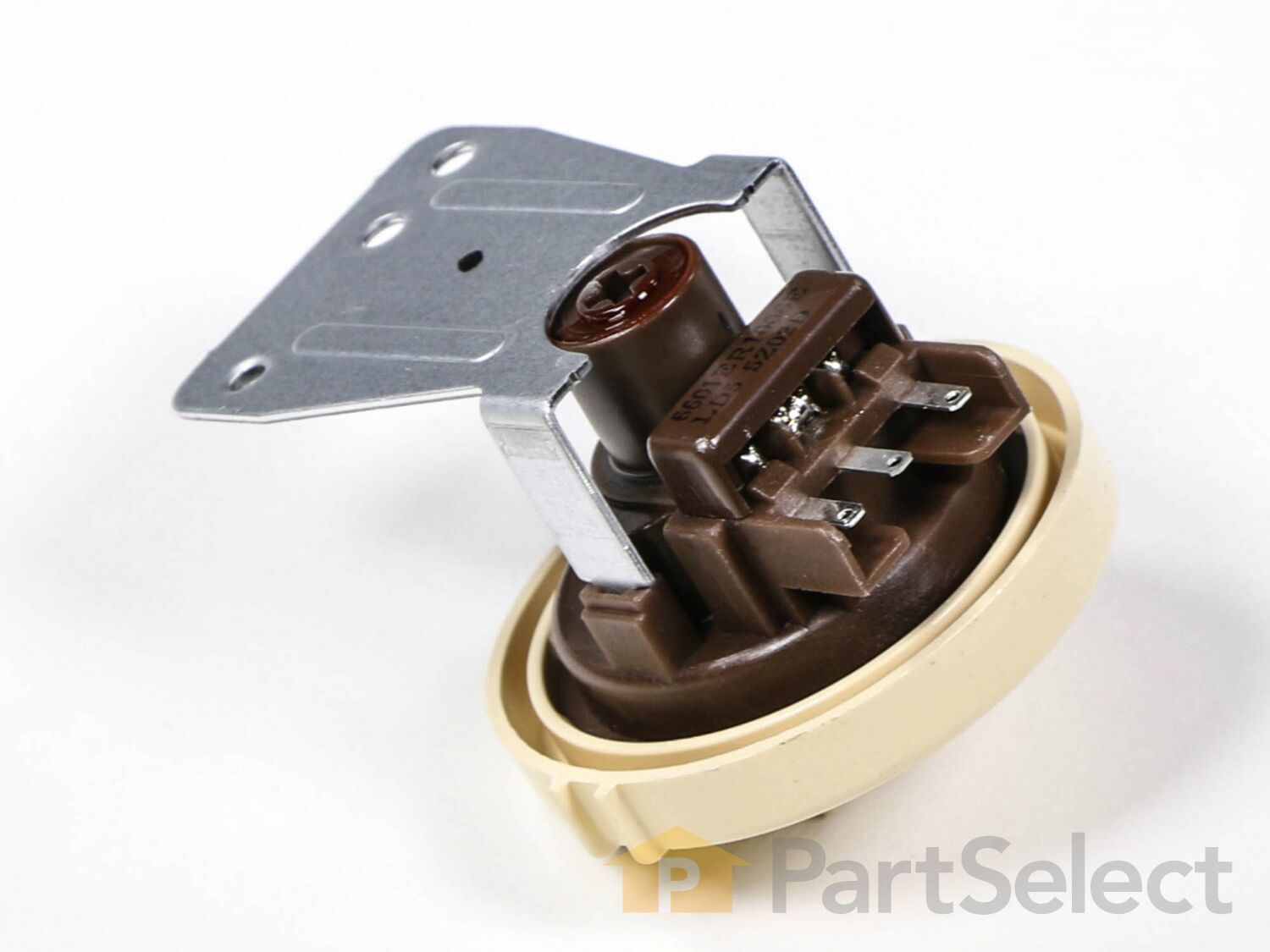

Pressure Switch Assembly 6601ER1006E

Hello Steven, Thank you for the question. If the valve has failed, normally it is the hot water side or the cold water side not both. If you can set the water to hot and it overfills then set it to cold and have it still over fill, the valve should be fine. We suggest checking the Hose to the Pressure Switch to make sure there is not a soap build up preventing the water from getting to the switch. If you remove the switch and blow into the port for the hose, you should hear a click if it is working properly. If there is no click, the switch is defective. We hope this helps!

Hi John, Thank you for your question. To test the switch, first unplug your washing machine. Before suspecting the switch as the issue, inspect the air dome hose by submerging it in water, sealing one end and blowing in the other, no bubbles should come out of the hose during this test. Additionally, you should inspect it for any signs of wear or damage. You will need to remove your appliance’s cabinet to access the air dome hose. You will also need to remove the water level pressure switch. It is usually found below the control panel, but may also be found below the sump area under the tubs. Inspect the switch for any signs of wear, burning, cracking, or damage. If the air dome hose is not damaged or if your switch shows any of the symptoms mentioned above, you may need a replacement water level pressure switch. We hope this helps! If you have any questions, please let us know. We are open 7 days a week. We look forward to hearing from you!

Hi Michael, thank you for reaching out. Based on our understanding of the issue, we would suggest you check the water level sensor pressure switch, part number PS3529317, to fix this issue. We hope this helps!

Hello Dennis, Thank you for your inquiry. We show that this part will fit your model. We hope this helps.

Hi Terry, thank you for the query. According to our research, if the water level is low, you may need to check that the water valve is completely opened. If the issue still occurs, you may need to replace the water-level pressure switch, part number PS3529317. We hope this helps!

Hello Bill, thank you for contacting us. Based on the description that you have provided, the issue is most likely to be with the control board. We would recommend checking the control board, part number PS12080692, to fix the issue. We look forward to hearing from you!

Hi Matt, thank you for the question. Yes, the mentioned part is compatible with your model. Glad to be of assistance!

Hi Stephen, thank you for reaching out. An overflow error displays the FE error code when the tub contains more water than the load requires. We would suggest checking the water level pressure switch, part number PS3529317. It is located inside the top panel near the main control board. You may need to replace it to fix the issue. We hope this solves your problem!
