Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

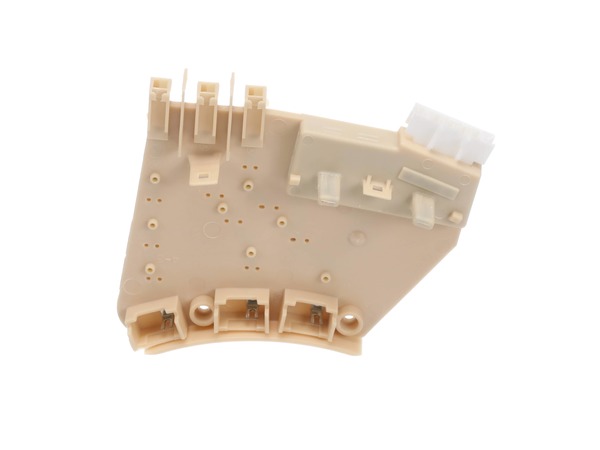

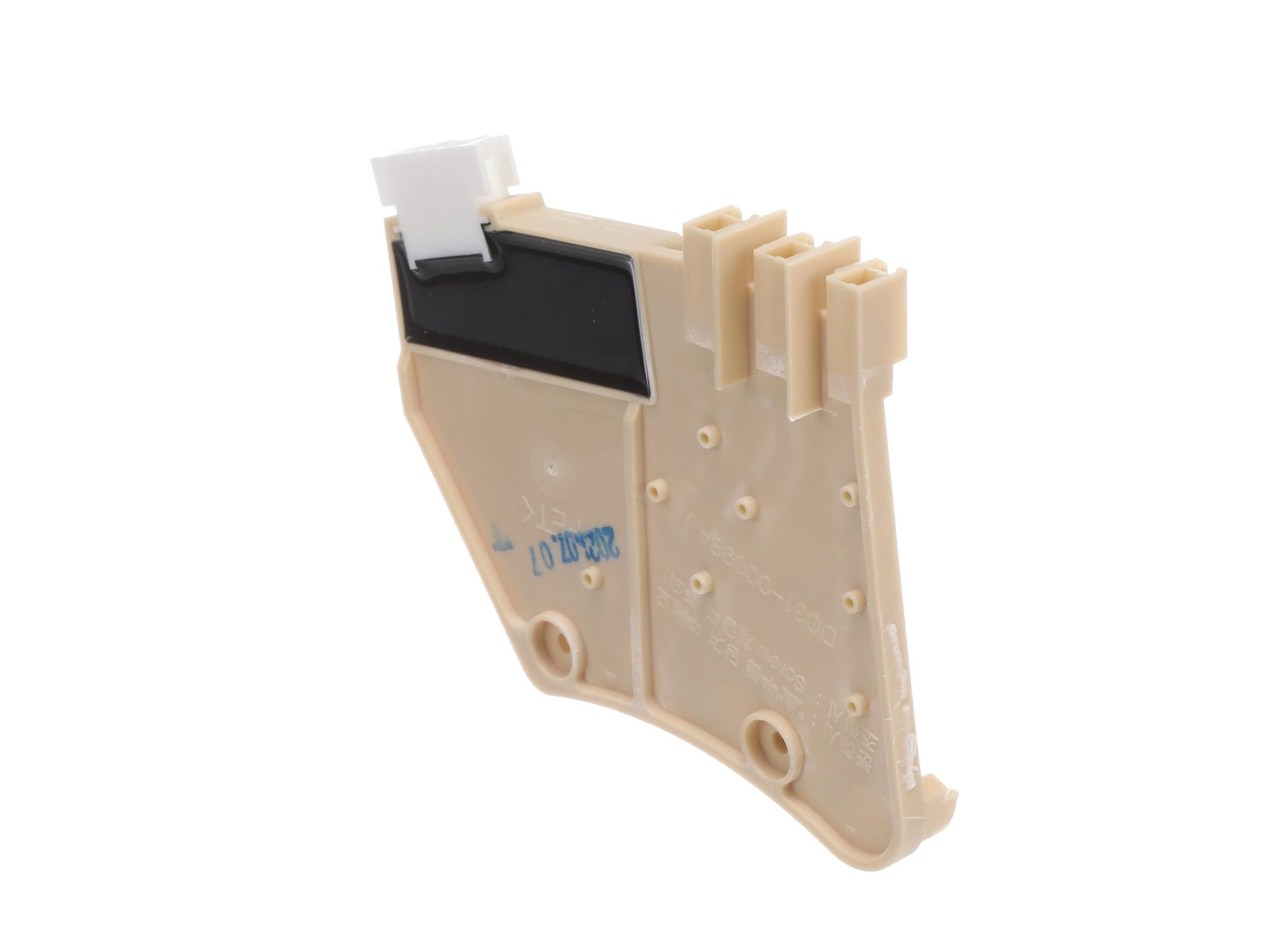

The Samsung Washer Motor Rotor Position Sensor, a genuine OEM item, ensures that your washing machine operates seamlessly by accurately monitoring the position and speed of the rotor. This premi?re sensor is built to withstand regular use and maintain peak appliance performance. A key part of some models of Samsung washing machines, it communicates this crucial rotor information to the machine's electronic control board. Prior to installing this part, ensure the appliance is unplugged and remember to wear work gloves for protection. Trust this Samsung-produced Motor Rotor Position Sensor to maintain the efficiency and durability of your washer.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
4 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Wade
April 30, 2018
I am getting pc1 error code using the washer diagnostic mode. Says to call a technician. From what i can find it is a clutch position error. I cannot see any hall effect sensor for the clutch. Was wondering where it is located and how to replace.
For model number Wa48j7700aw/aa
Hello Wade, thank you for your question. The PC1 code is in reference to the clutch and clutch positioning. There is no hall sensor on your specific unit. I would recommend checking the Washer clutch Parts #: DC31-00090B, Washer drive shaft and shifter assembly Parts #: DC97-15494E, and the Washer motor rotor position sensor Parts #: DC31-00098A. These parts are all under the tub parts diagram when you search your model information. I hope this helps!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Garvin
November 5, 2018
Does this part work on my model
For model number WF337AAR/XAA
Hi Garvin, thank you for your question. Unfortunately no. I have listed the correct rotor and stator assembly in a link down below for your appliance. I hope that helps. Good luck with your repair.
I am getting a 3E error code and the drum will not spin. I see some motor parts are unavailable so I am unsure what I need to remedy the issue.
For model number 402-49032013
Hi Adam,
Thank you for your question. The 3E error code is letting know that a wire harness or wiring connection is either loose, not connected, or the wiring is damaged. You will need to check the wire harnesses on the motor, the sensor, the stator, the electronic control board and the rest of the parts in your washer to see which one is causing the issue and either reconnect it or purchase a new one if it is damaged. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Tom
January 21, 2018
Just want to make sure this is the problem. Error code 3e checked voltage at hall sensor.Reading 1.0v dc
For model number Wf457argsgr
Hi Tom,
Thank you for your question. If you do a manual test on the washer where you manually spin the drum the reading should be 0Vdc or 3.75Vdc. Here is a link to a website that you may reference for more information on this issue, https://removeandreplace.com/2016/12/03/samsung-washing-machine-error-code-3e/. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS4204673
Manufacturer Part Number: DC31-00098A
